Miniature Circuit Breaker

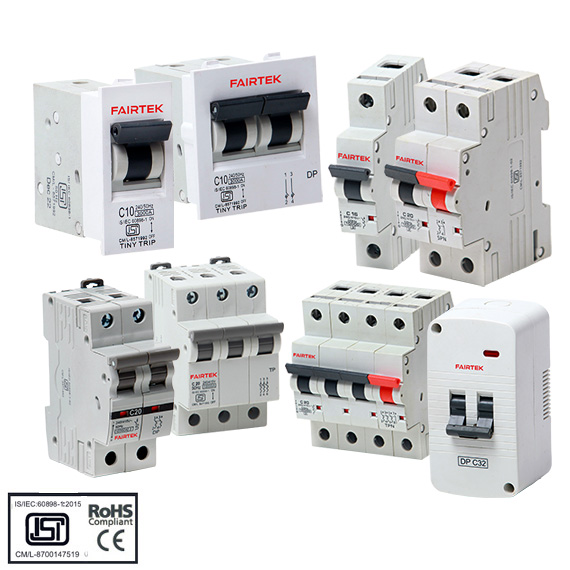

MCB (Miniature Circuit Breaker)

A minitaure circuit breaker controls the supply to various minitaure circuits on the main circuit. They switch off if they detect an overcurrent i.e. current that supersedes the circuit's current rating. And as power distribution play vital role in all commercial, industrial and residential sectors, breaker peformance by electrical safety, long lasting functionality and economic cost have been designed to consistently fulfill all safety and technical requirements and with these features Fair Switchgear is benchmarking new standards for customer friendly and electrial fault protection and ability to disconnect short-circuits upto 10kA.

The available range is in tripping characteristics type B & C for SP, SPN, DP, TP, TPN & FP with configuration 6A to 63A current ratings. The MCB is conforming to IS/IEC60898-1:2015

Enquire Now
  • Highlights
  • Features
  • Brochure
Trip Free Mechanism
Rapid Close Mechanism
MCB Trips even if held in ON position.
Current Limiting Design
Less let through energy under any fault condition by fast contact isolation and quick Arc Quenching of the Arc and this reduces stress on connected load / cables.
Combination Head Screw
Easy to operate, safe and provide the flexibility for Both +/- Head Screw Driver
Low Watt Loss & Energy Saving( Low Power Consumption)
Cost Effective and Energy Saving through less watt loss over its whole life cycle.
Din Rail Mounting
Easy user friendly Snapping & firm seating on 35mm Din Rail
IP 20 Degree Protection
IP 20 Degree Protection is there.
Consistent Protection in Overload & Short-Circuit
Very fast tripping & circuit isolalation consistently when overload or short-circuit faults occurs.
Fire Retardant Body
Fire Retardant Body Cover helps to prevent burning issue.
Air Circulation
Air Vent provision for effective air circulation around individual poles to emit the air to outside.
Finger Touch proof terminal protection
All Terminal are Finger Touch Proof and also prevent Electrical Shock even if accidental touch.
  • Protects against Overloads & Short Circuits
  • Short Circuit Breaking Capacity 10 kA.
  • Low Watt-loss and Energy Saving.
  • Rapid closing mechanism.
  • Tough fire resistance body.
  • Clear indicaon of the operaonal status of device.
  • MCB Body is Moulded Flame Retardant Thermoplasc Material.
  • Higher operaonal endurance.
  • Easy to operate & replace.
  • Low-temperature rise.
  • Mid Trip Funcon in Center Knob MCB.
  • Consistency in tripping characteriscs.
  • Finger proof terminal protecng against accidental contact with live part.
Download Brochure

Related Products

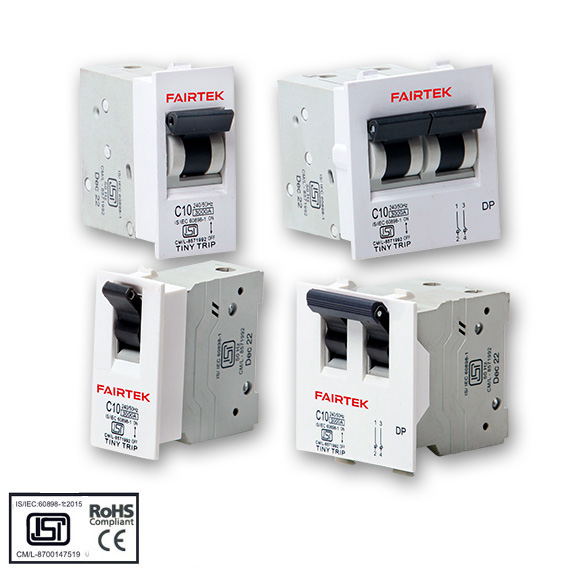

Modular MCB

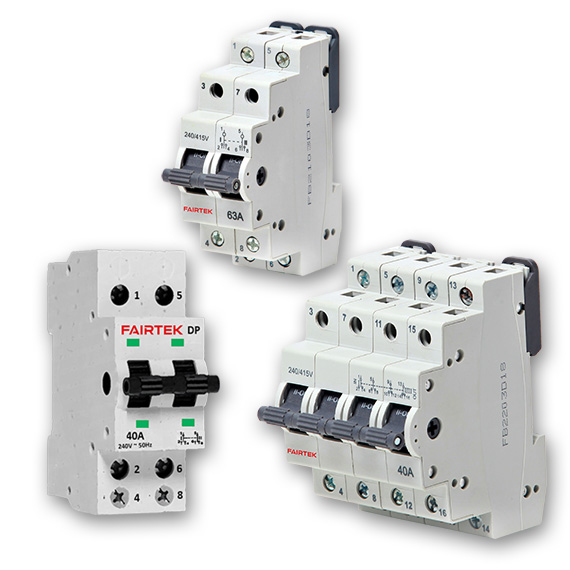

Changeover Switches
